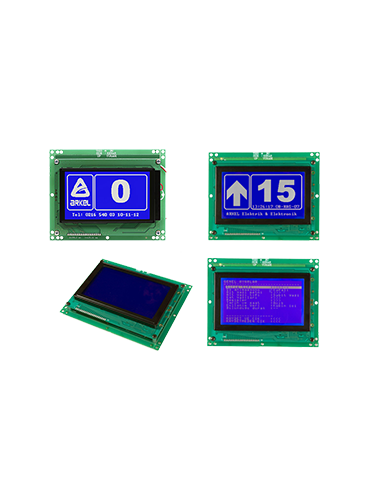

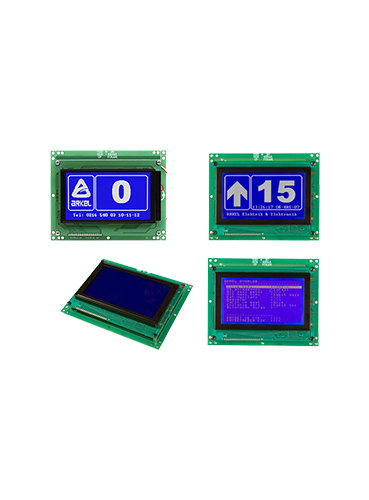

LCD240X128
Indicators
LCD Type
Monochrome Graph
Visible Area (mm) Length × Width
114 mm x 64 mm
Resolution
240 x 128 Pixels
Video Playback
Not Available
Playing Music
Not Available
Voice Announcement
Not Available
Date and Time
Available (with ARL-500)
Temperature
Not Available
Working Interface
Parallel signal CANbus Serial Communication (with ARL-500)
Working Position
Horizontal
Programming Shape
With PC Cable Connection
Language Options
Turkish and English
- 32 stop supports (48 stops in CANbus mode with ARL-500 control system)
- Can be used as cabin or floor display
- Support for Gray code, Binary code, Arkel counter system, 7-segment display and CANbus (only with ARL-500 control system)
- Programmable from 4-button on its own menu or from PC with LCD240128A Uploader software
- Ability to program each individual image individually
- Programmable moving / stationary arrow indication
- Programmable moving / still subtitle
- Programmable out-of-service and overload images
- Programmable logo images
- Can use characters such as -, B, L, Z for station names
- Ability to save, change and restore settings made with computer software
- Choose from among the pictures available in its library or use your own pictures
- Signal partner can be used as positive or negative
- Date and time display (only in CANbus mode with ARL-500 control system)
