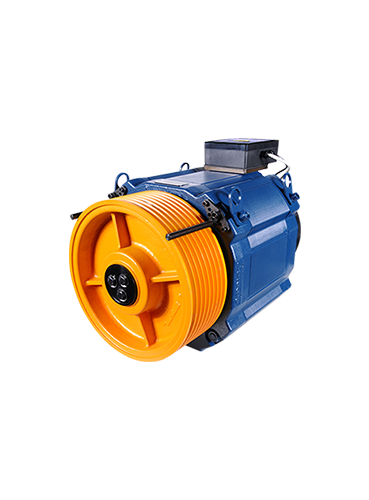

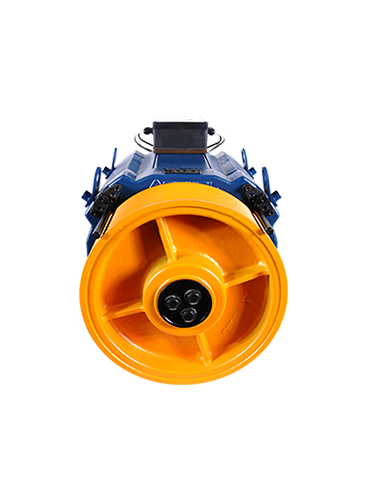

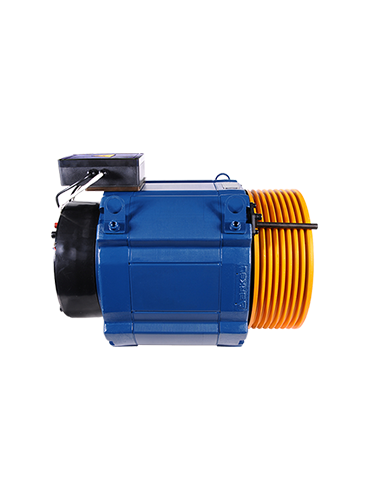

ARS Lift Motor Series
High and silent power performance, a strong body, easy installment option that is optimized with Arcode: New ARS Series Gearless Motor.
Max Capacity
1250 KG
Suspension
2:1
Nominal Torque
660 Nm
Rated Speed
2 m/s
Sheave Diameter
320 mm
Rope Size
8x8 mm
Power
16,6 KW
Nominal Current
37,8 A
Voltage
380 V
Ingress Protection
IP44
