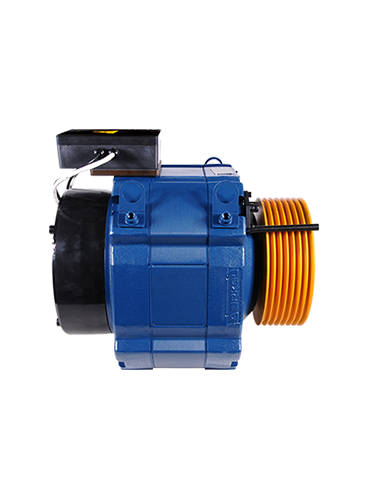

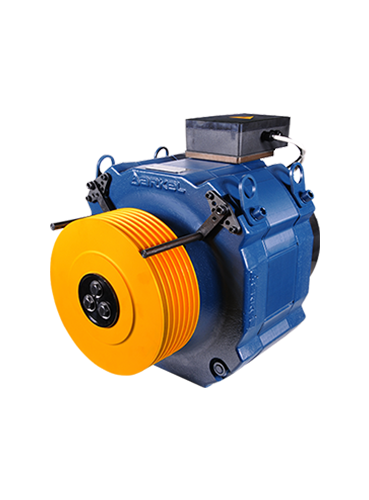

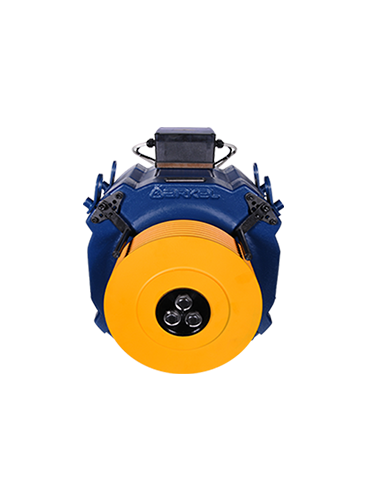

ARS Lift Motor Series
High and silent power performance, a strong body, easy installment option that is optimized with Arcode: New ARS Series Gearless Motor.
Max Capacity
800 KG
Suspension
2:1
Nominal Torque
330 Nm
Rated Speed
1 m/s
Sheave Diameter
240 mm
Rope Size
7x6,5 mm
Power
5,5 KW
Nominal Current
13 A
Voltage
380 V
Ingress Protection
IP44
